Online Activate Module in My Controller

In case of the first activation and running of the paid module, there are two cases to be considered.

Case 1. Download & Install on the Dart-Store Website

Case 2. Download & Install on the Dart-Store Module in Dart-Platform

In case of the changing activation of the paid module, two cases can be considered.

Case 1. Setting-Installed Module List on Dart Platform:

Case 2. Setting in My Module page in Dart-Store: (Updating)

In case of .. Full Slot .. (이때는 엑티베이트 못하는 케이스만 보여줌)

1. Full slot when activating.

Activate Controller Online

Case 1.

1. Download paid module on the Web

2. Run paid module for the first time in Dart-Platform.

Condition

1. Dart-Store is running.

2. Log in to the same account as the account purchasing the module.

If both Two conditions are met:

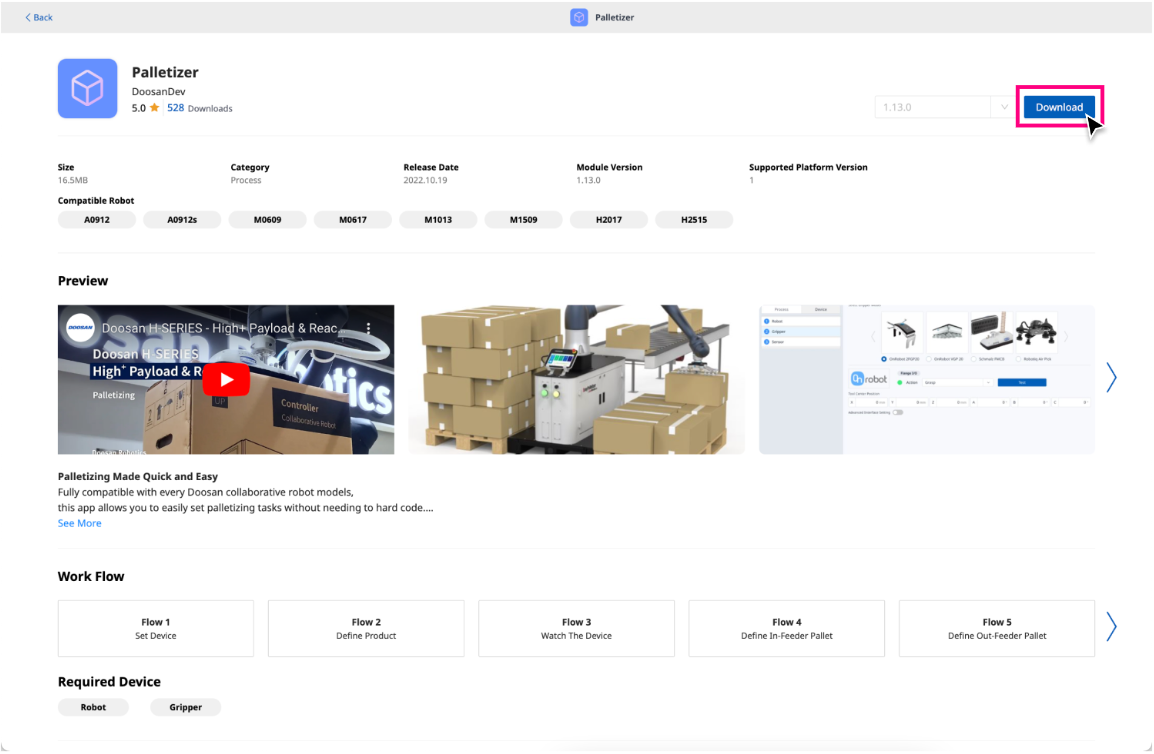

• Step 1: Download file .dm on Web.

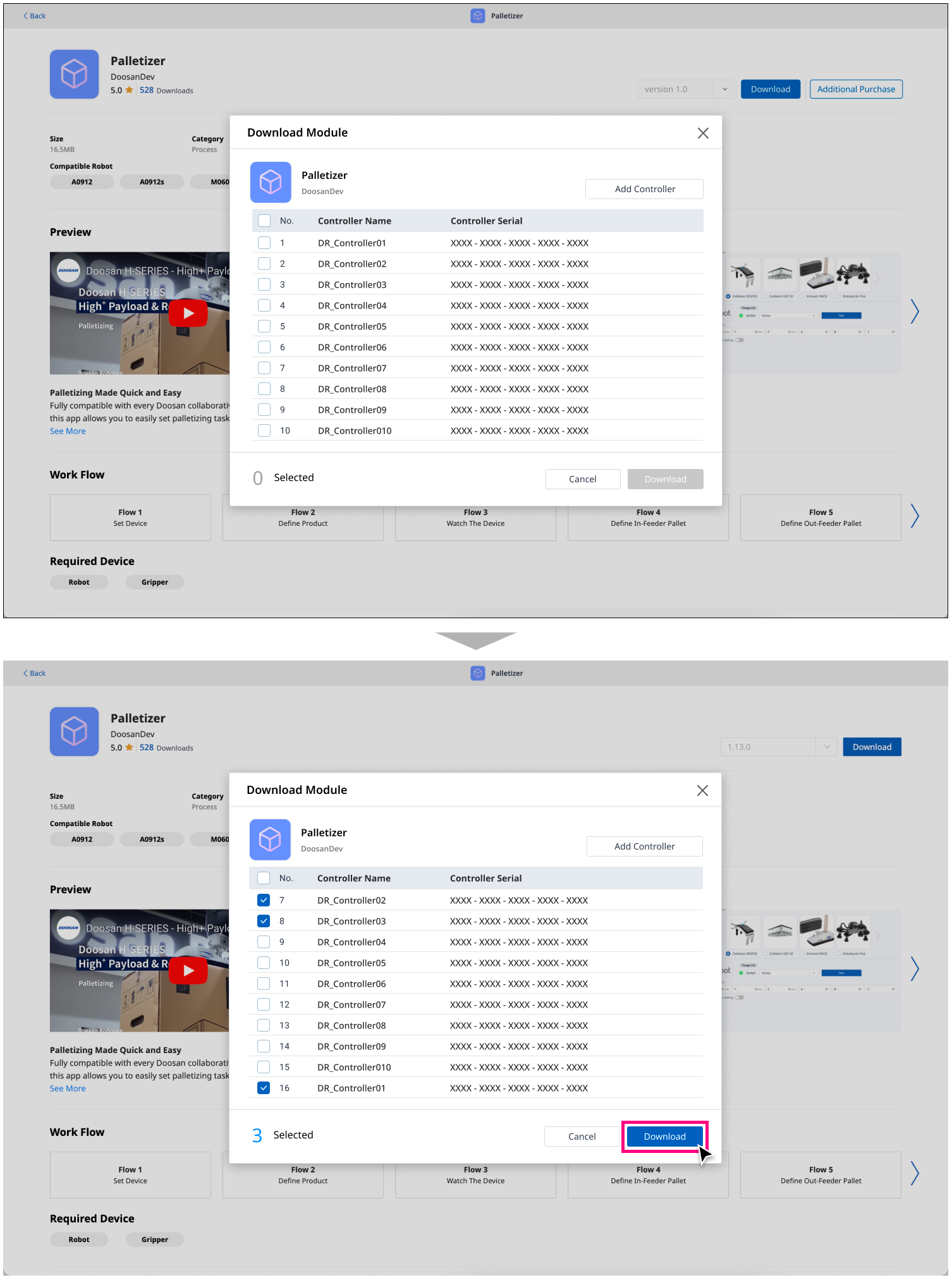

• Step 2: Choose the Controller you want to use.

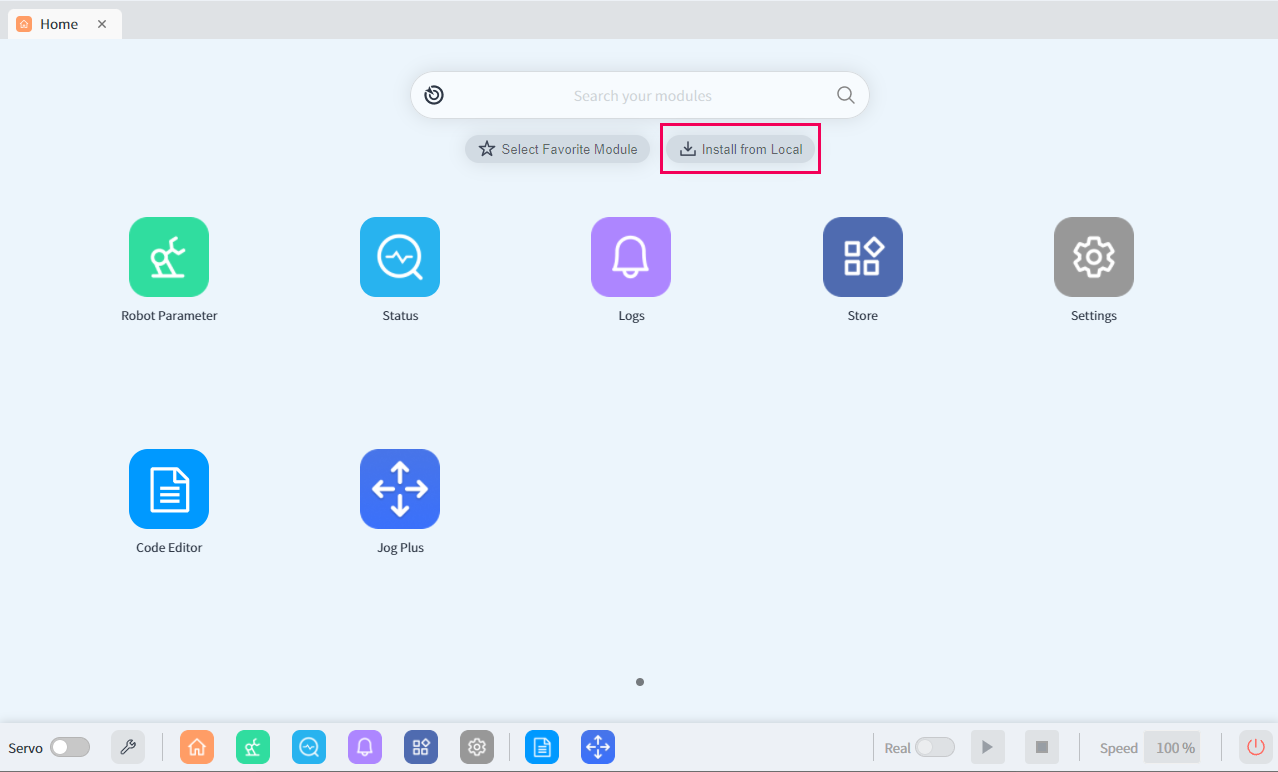

• Step 3: Install file .dm into Dart-Platform.

• Step 4: Run the module the first time.

• Step 5: Automatically activate in both Dart-Store, Dart-Platform. Then, show a toast message informing activating successful.

If One of the Two conditions is met:

• Step 1: Download file .dm on Web.

• Step 2: Install file .dm into Dart-Platform.

• Step 3: Run the module the first time.

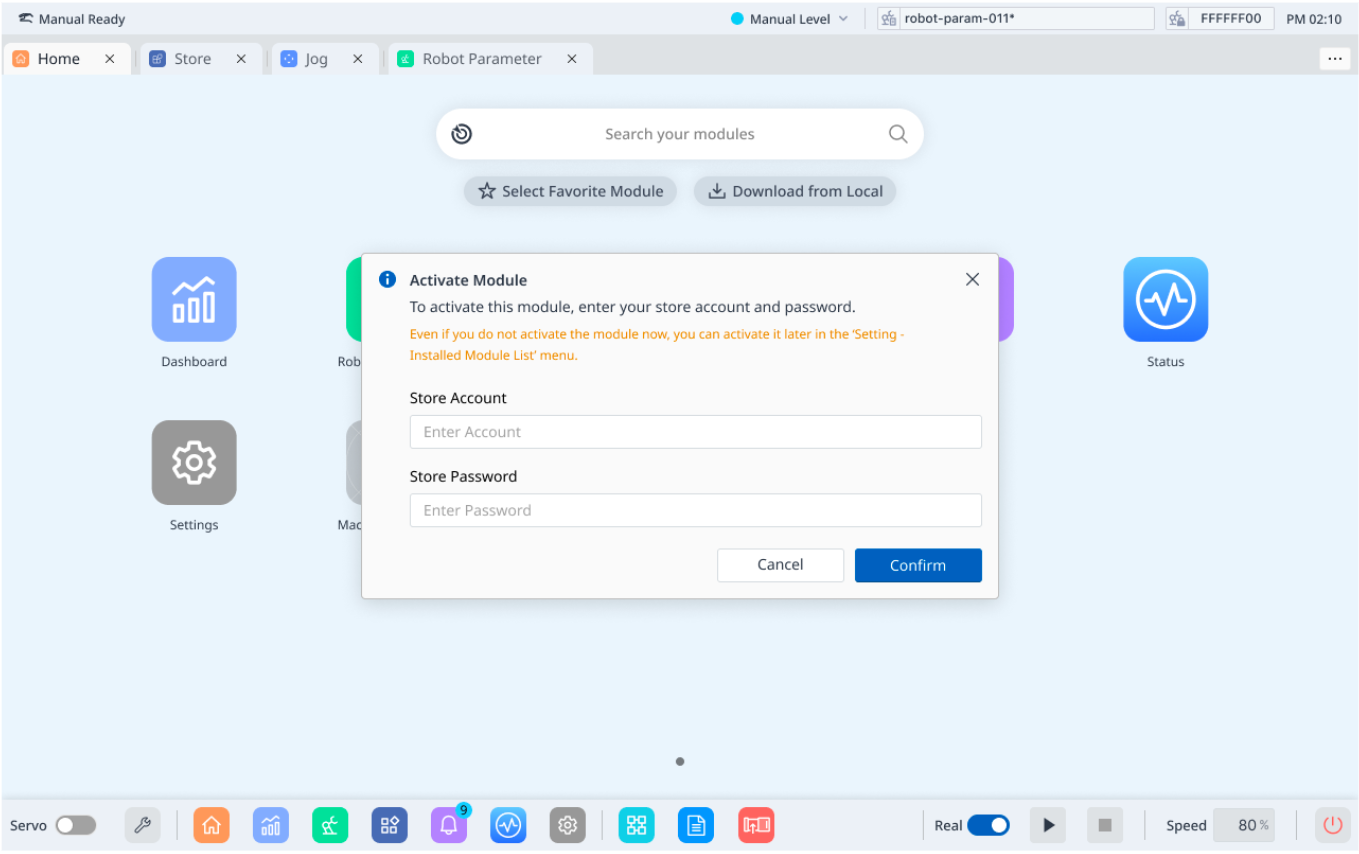

• Step 4: Display popup Activate Module on Dart-Platform.

• Step 5: Activate successfully in both Dart-Store and Dart-Platform. Then, show a toast message informing activating successful.

Case 2:

Install the paid module in Dart-Store of Dart-Platform and run the paid module for the first time on the Dart-Platform:

Condition

1. Dart-Store is running.

2. Log in to the same account as the account purchasing the module.

If both Two conditions are met:

• Step 1: Open Dart-Platform.

• Step 2: Click the Dart-Store icon.

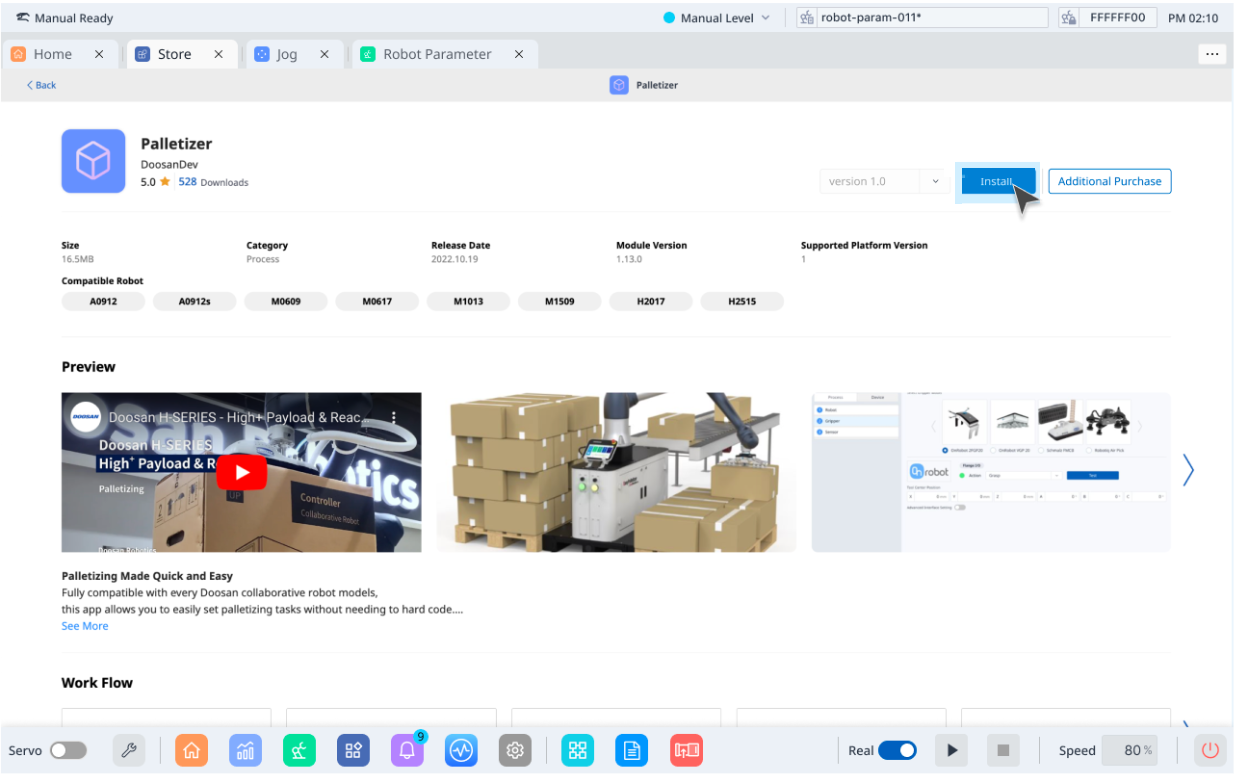

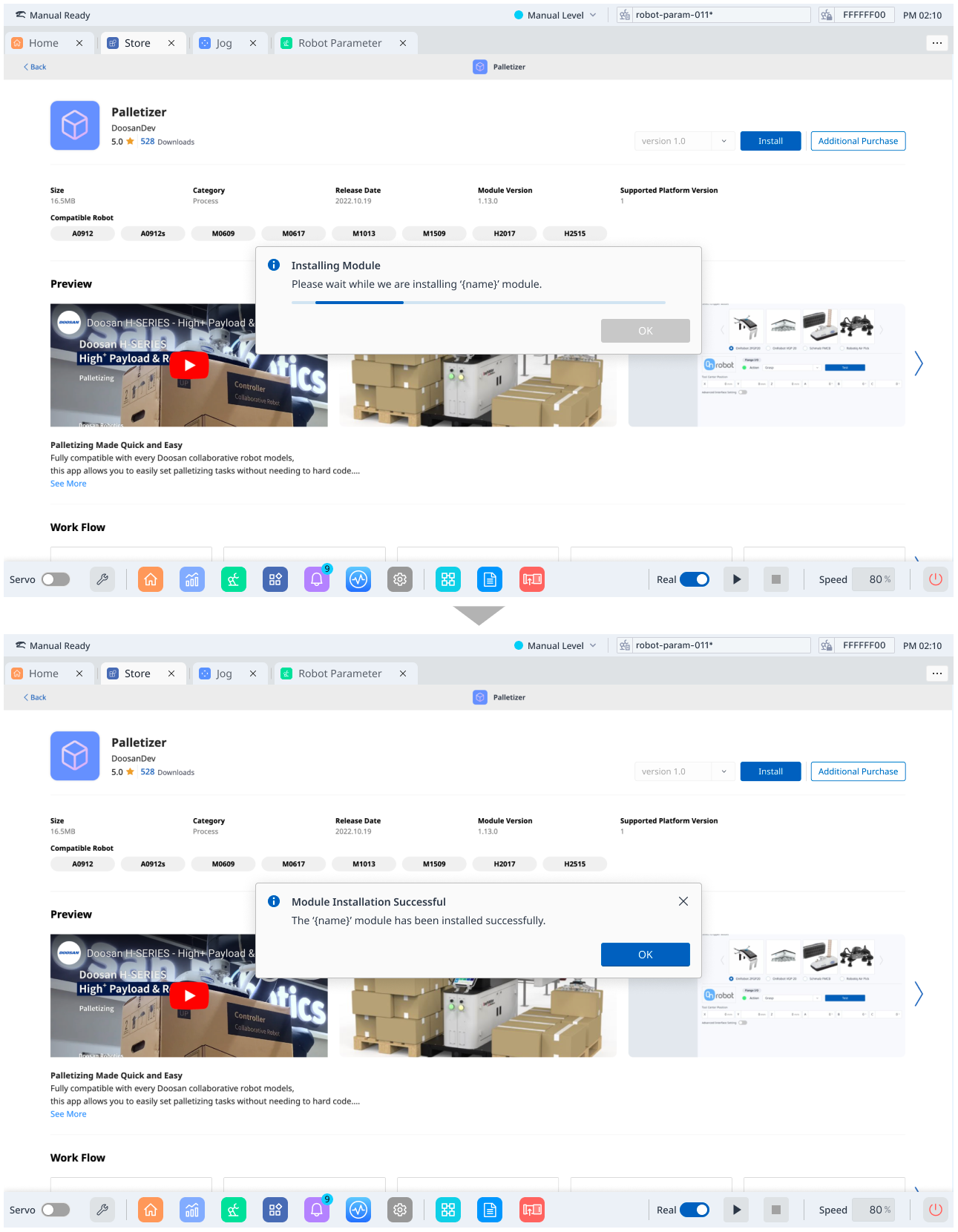

• Step 3: Install the paid module on the Dart-Platform.

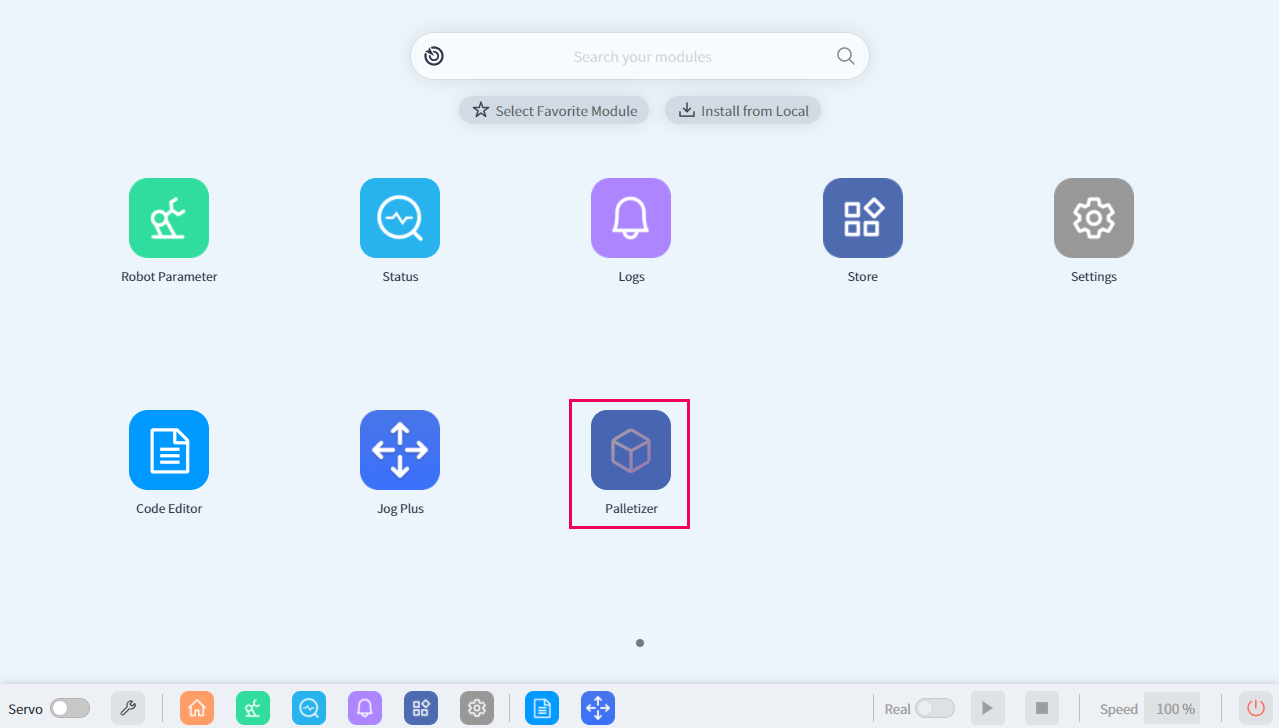

• Step 4: Run the module the first time on Dart-Platform.

• Step 5: Automatically activate in both Store and Dart Platform. Then, show a toast message informing activating successful.

If One of Two conditions is met:

• Step 1: Install the paid module on the Dart-Platform.

• Step 2: Run the module the first time.

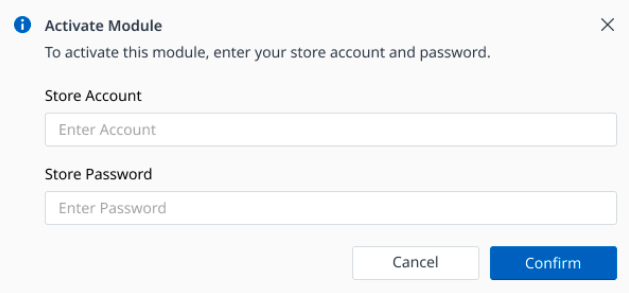

• Step 3: Display popup Activate Module on Dart-Platform.

• Step 4: Activate successfully activated in both Store and Dart-Platform. Then, show a toast message informing activating successful.

Scenario 3

Setting-Installed Module List on Dart Platform:

Condition

1. Dart-Store is running.

2. Log in to the same account as the account purchasing the module.

If both Two conditions are met:

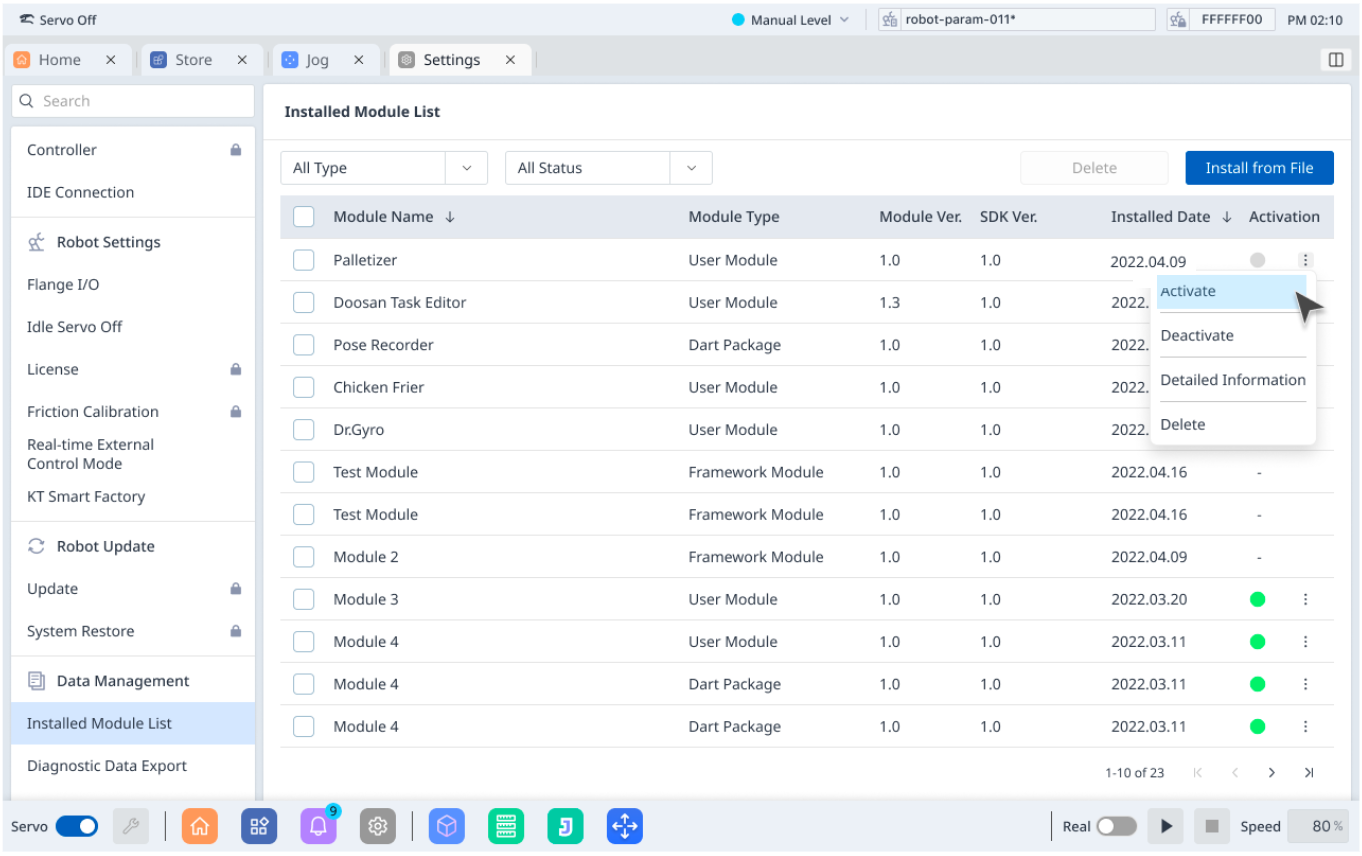

• Step 1: Open Dart-Platform ▸ Click on Settings option ▸ Choose Installed Module list on left menu.

• Step 2: Choose the Module you want ▸ Click on ⋮ the button ▸ Choose Activate option.

• Step 3: Activated in both Store and Dart-Platform. Then, show a toast message informing activating successful.

If 1 of 2 conditions is met:

• Step 1: Open Dart-Platform ▸ Click on Settings option ▸ Choose Installed Module list on left menu.

• Step 2: Choose the Module you want ▸ Click on ⋮ the button ▸ Choose Activate option.

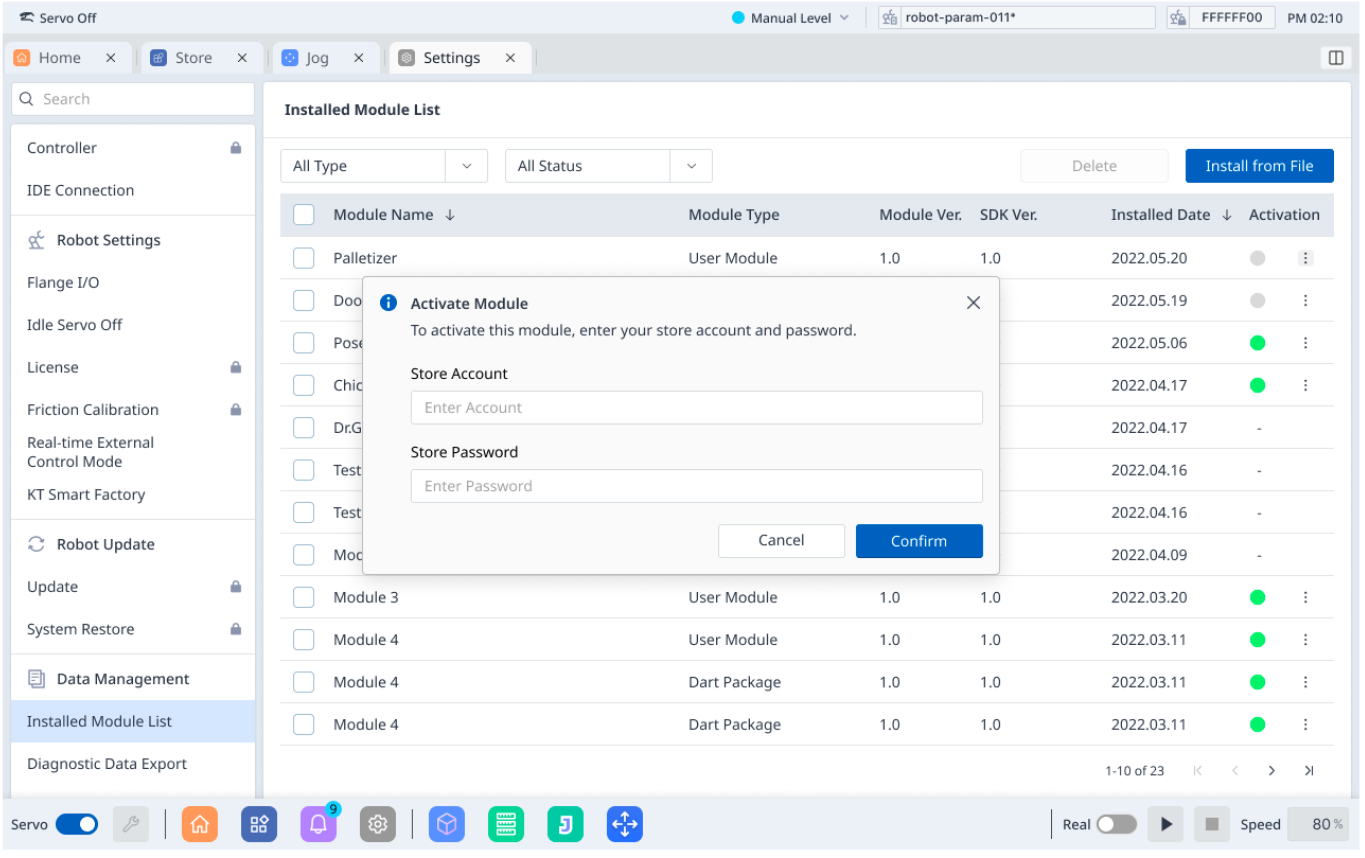

• Step 3: Display popup Activate Module on Dart-Platform ▸ Enter Store Account.

• Step 4: Activated in both Store and Dart-Platform. Then, show a toast message informing activating successful.

Scenario 4

Setting in My Module page in Dart-Store: (Updating)

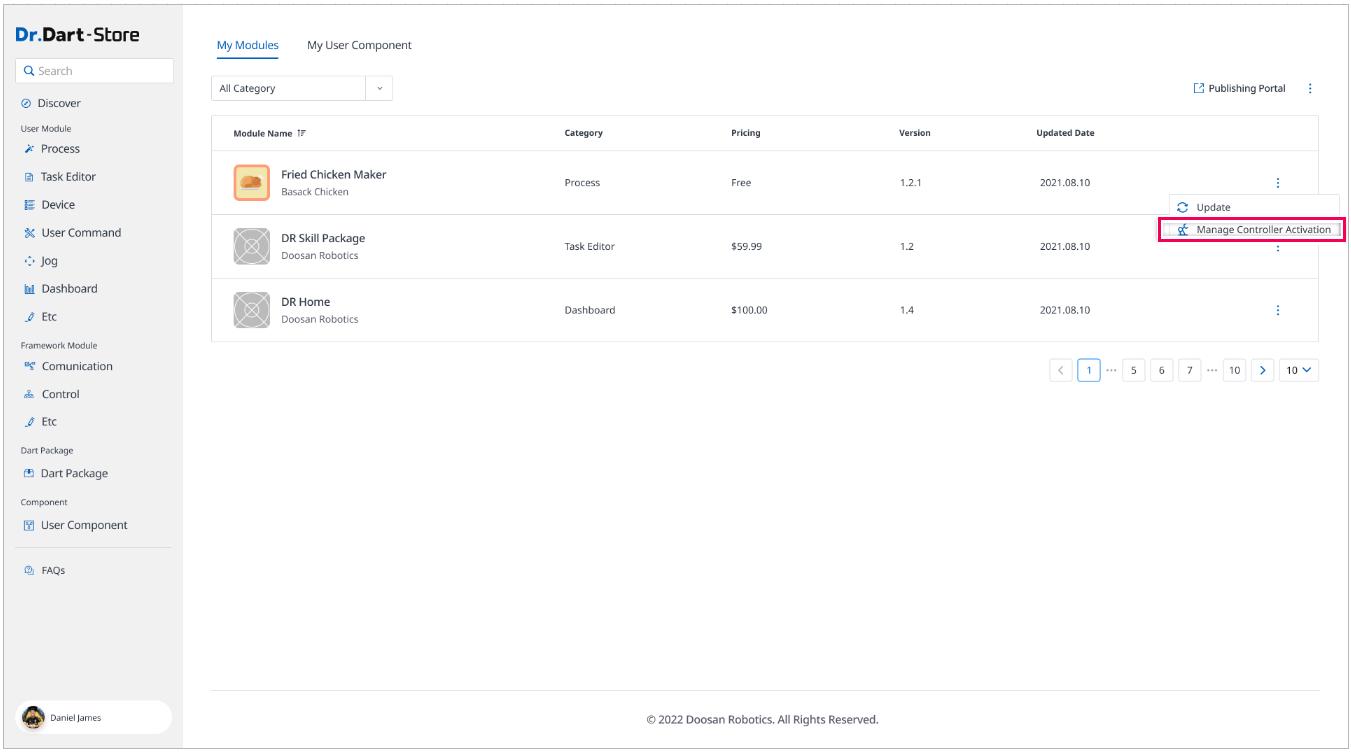

• Step 1: In My Page, for Paid Modules, click on ⋮ button.

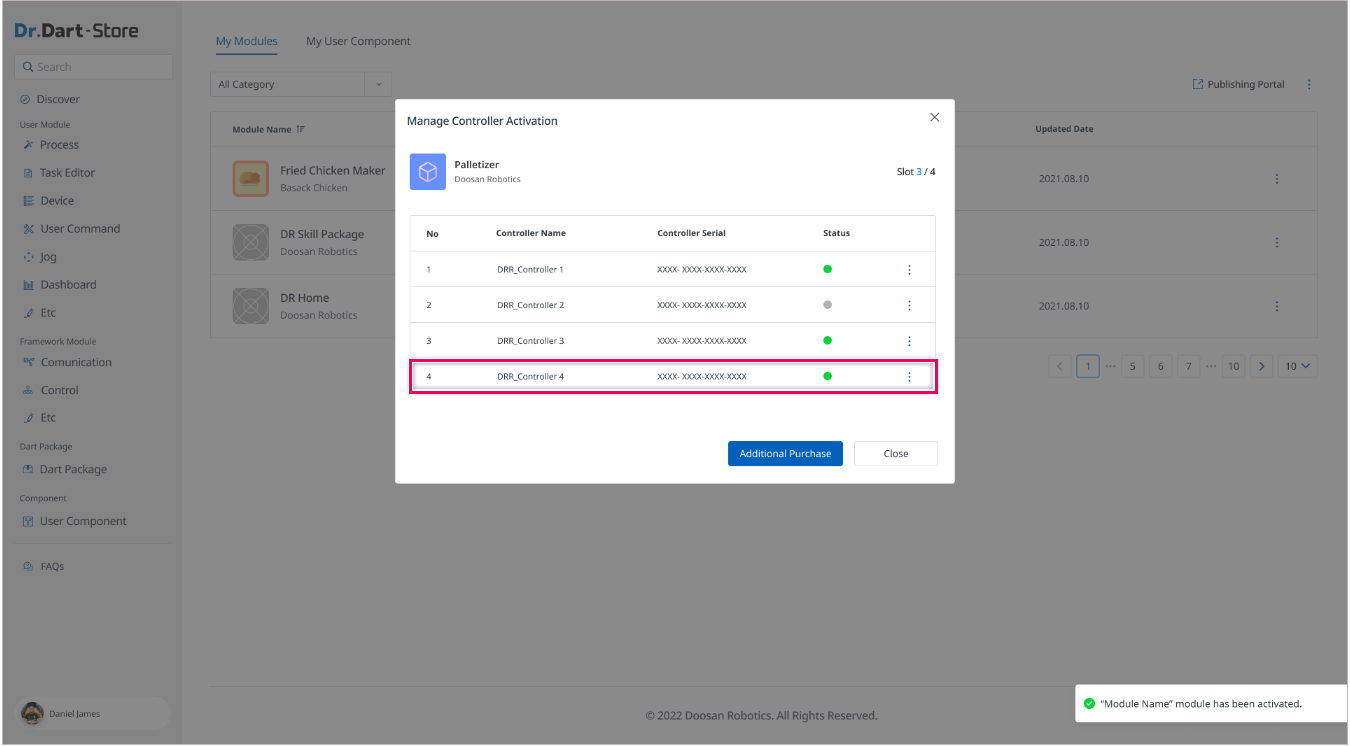

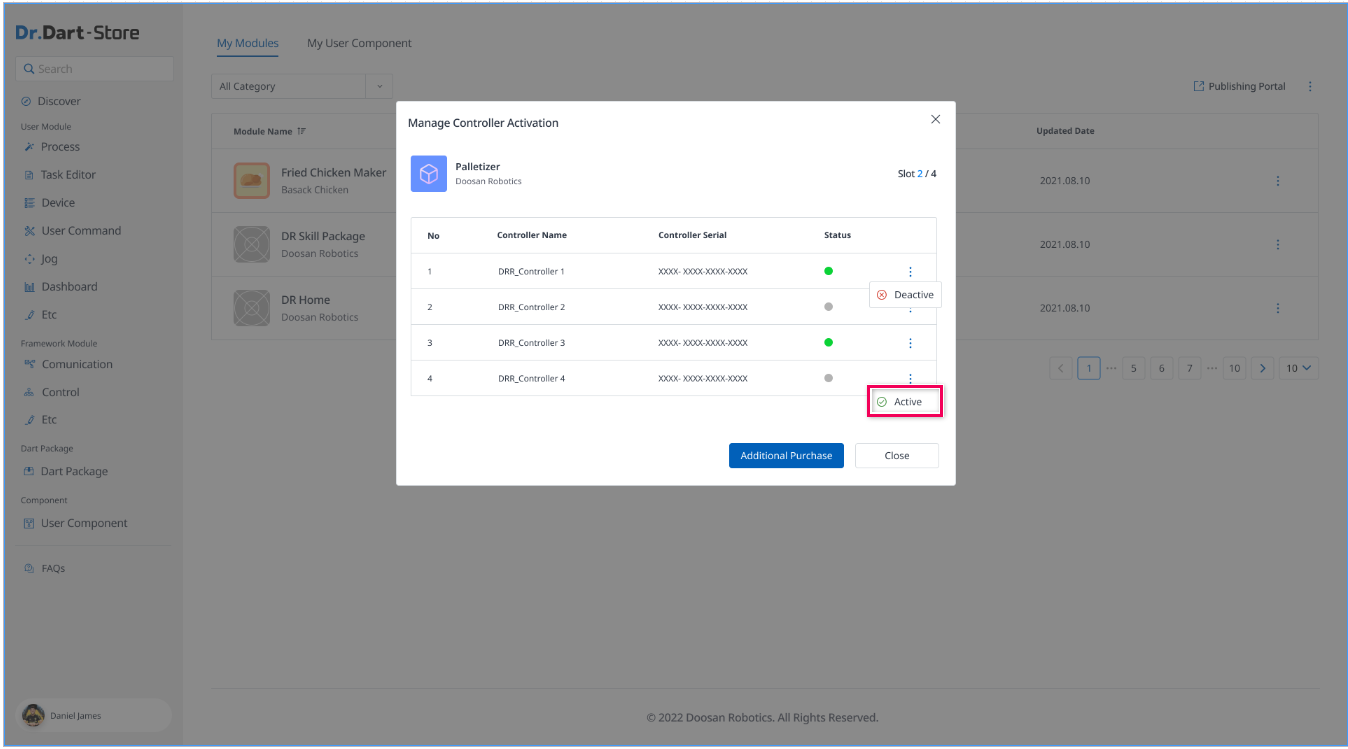

• Step 2: Show a popup when clicking on the Manage Controller Activation button.

• Step 3: Activate/ Deactivate the controller.

Scenario 5

Full slot when activating.

Condition

1. Dart-Store is running.

2. Log in to the same account as the account purchasing the module.

If both Two conditions are met:

• Step 1: Open Dart-Platform ▸ Click on Settings option ▸ Choose Installed Module list on left menu.

• Step 2: Choose the Module you want ▸ Click on ⋮ the button ▸ Choose Activate option.

• Step 3: Show this popup after running the module on Dart-Platform/Activating the module in Module List on Dart-Platform.

If One of Two conditions is met:

• Step 1: Open Dart-Platform ▸ Click on Settings option ▸ Choose Installed Module list on left menu.

• Step 2: Choose the Module you want ▸ Click on ⋮ the button ▸ Choose Activate option.

• Step 3: Display popup Activate Module on Dart-Platform ▸ Enter Store Account.

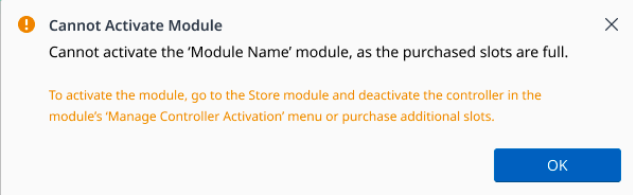

• Step 4: The Cannot Activate Module popup will be displayed.
