Kill Thread Command
Overview
The Kill Thread Command helps to terminate a thread.
The program is automatically terminated when the DRL program is terminated, even if the thread_stop()
command is not used.

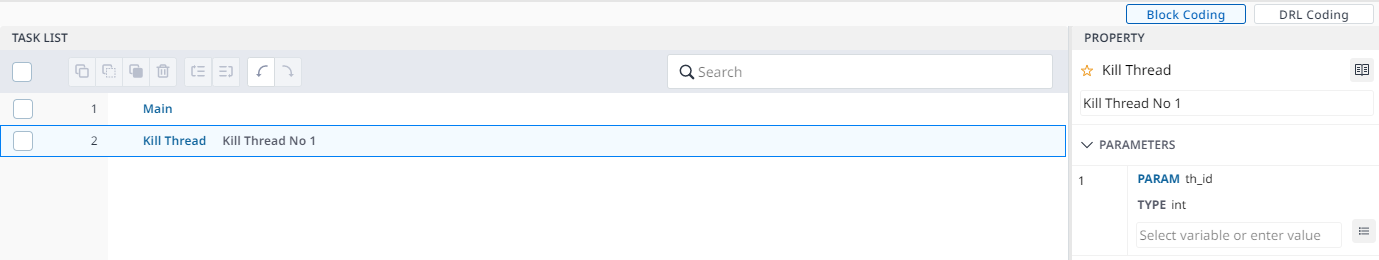

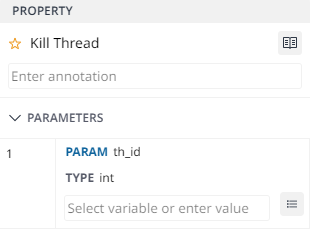

Property
Annotation
You can insert text in the description, unique meaning, or nickname for each Parameter to differentiate from many DRL Components.
Parameters
In Parameter Panel, it will help you create or select your variable to define the parameter of the chosen command.
For detailed DRL description other than parameter, please refer to the following online manual link: https://manual.doosanrobotics.com/help/programming/2.9/publish/en_us/thread_stop-th_id-8427373.html.
Parameter Name | Data Type | Default Value | Description |
th_id | int | - | Thread ID to stop |
Example
DRL Code
def fn_th_func():
if check_motion()==0: # No motion in action
set_digital_output(1, OFF)
else:
set_digital_output(1, ON)
#----- Main routine --------------------------------------
th_id = thread_run(fn_th_func, loop=True)
# do something…
thread_stop(th_id) # Stops the thread.
