Slider with Textfield

Overview

Slider with Textfield is a user interface component for adjusting a number value using a slider input. It is paired with a Textfield for direct entry of the value.

Slider with Textfield contains Slider, Stack, TextField, Typography.

Import

CODE

import {
  InputAdornment,
  Slider,
  Stack,
  TextField,
  Typography,
} from '@mui/material';

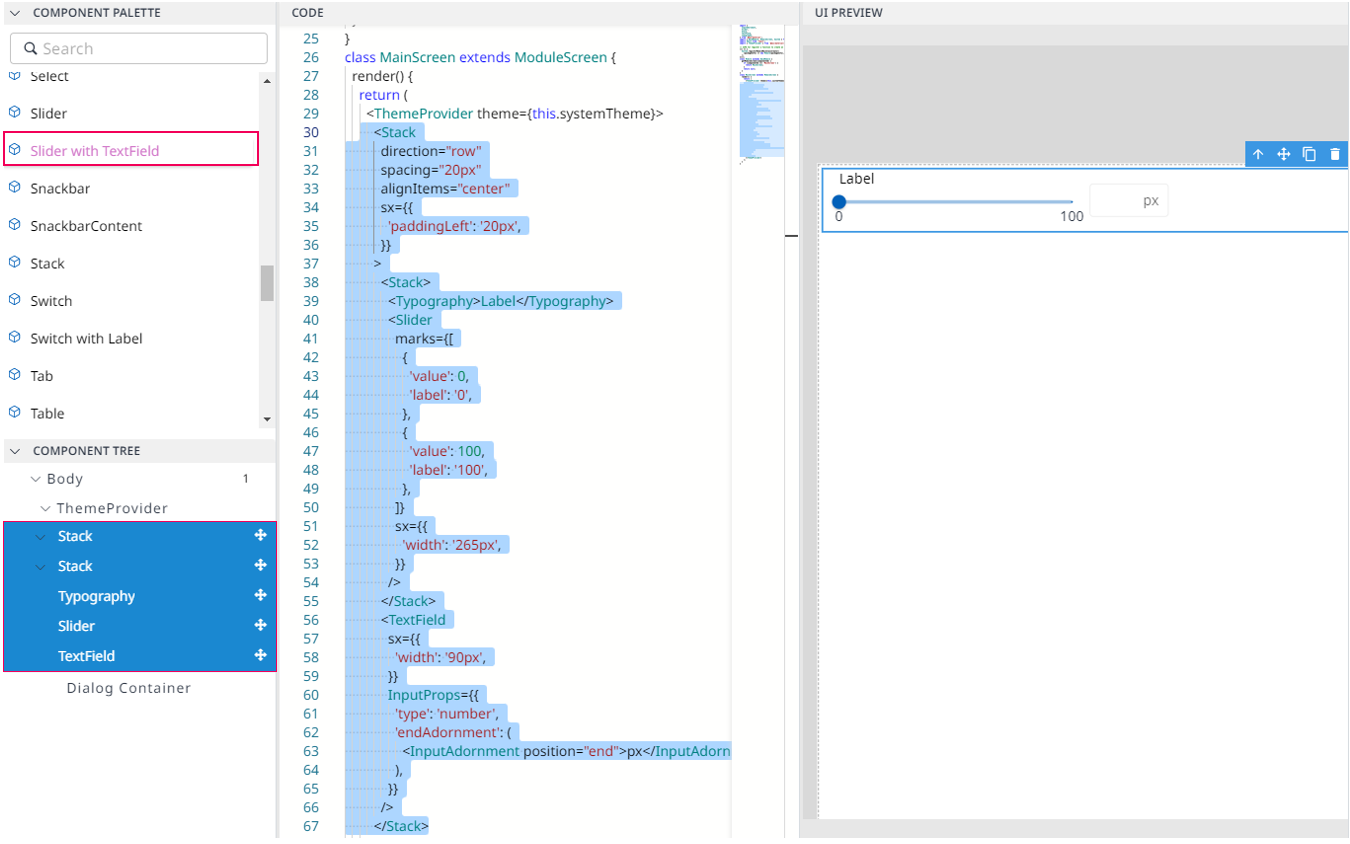

The above source will be imported automatically after dragging and dropping the Basic Component to the UI Preview Panel.

Code Sample:

CODE

 <Stack
      direction="row"
      spacing="20px"
      alignItems="center"
      sx={{'paddingLeft': '20px',}}>
          <Stack>
            <Typography>Image size</Typography>
            <Slider marks={[{'value': 30,
                             'label': '30',},
                            {'value': 100,
                             'label': '100'},]}
              sx={{'width': '265px',}}/>
          </Stack>
          <TextField
            sx={{'width': '90px',}}
            InputProps={{'type': 'number',
                        'endAdornment': (
                         <InputAdornment position="end">px
                         </InputAdornment>),}/>
  </Stack>
