Status - Analog Output Test Button

Overview

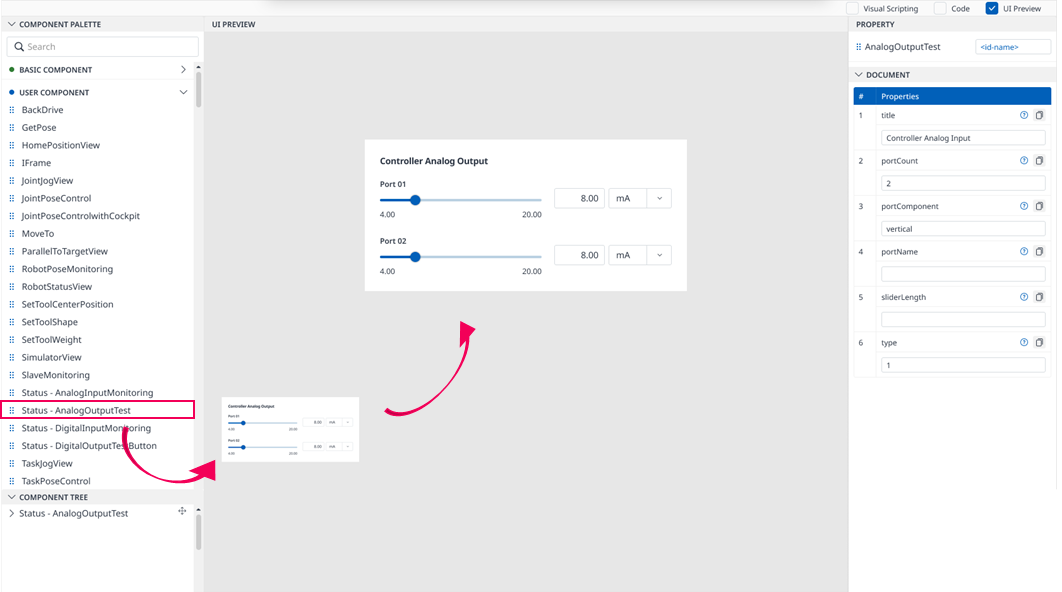

Status - Analog Output Test Button is a User Components that generates a form named Status - Analog Output Test Button if you drag and drop it into the UI PREVIEW panel.

It displays the Analog Output status of the Controller.

When the initial display on Dart-Platform, this User component calls API getAnalogOutput to get data, show at Slider, Textbox, and API getAnalogOutputType to get data and show at Droplist.

Import

After dragging and dropping the Status - Analog Output Test Button to the UI PREVIEW panel, the following will be imported to Code Editor:

Library:

CODE

import AnalogOutputTest, {AnalogOutputTestAPI,} from './buc/analog.output.monitoring';

Source code:

CODE

<AnalogOutputTest moduleContext={this.moduleContext} title={"Controller Analog Output"} portCount={2} portComponent={"vertical"} type={0}></AnalogOutputTest>

./dbuc/ can be changed to ../../../buc or ../buc or others, depending on the package level of the current file .tsx file.

Property

The PROPERTY panel of this User Component includes the following:

	Properties	Type	Default Value	Description
1	title	Textbox	“Controller Analog Output”	Change the title of UC. Default: Controller Analog Output.
2	portCount	Textbox	2	Arrange port count according to total row/column
3	portComponent	Textbox	“vertical”	Sort horizontal/ vertical settings.
4	portName	Textbox		Set default port name.
5	sliderLength	Textbox		Setting the length of slider.
6	type	Textbox	0	The type of Digital I/O port 0: CONTROLLER (Connect DigitalIO to ControlBox port) 1: FLANGE (Connect DigitalIO to Flange port)

When clicking the copy icon next to each item in the DOCUMENT group of the PROPERTY panel, the corresponding textbox values will be copied to the clipboard.
If you type code for User Component in Code Editor, the corresponding value will be reflected in the PROPERTY panel. Also, if you change the properties of each User Component, the corresponding source code will be generated to Code Editor.

Code Sample

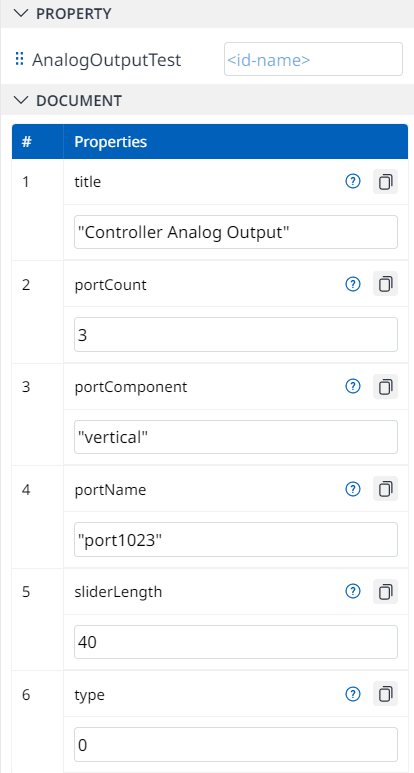

When the user changes the value in the PROPERTY panel, the corresponding source code will be generated in the CODE EDITOR panel.

CODE

<AnalogOutputTest
            moduleContext={this.moduleContext}
            title={'Controller Analog Output'}
            portCount={3}
            portComponent={'vertical'}
            type={0}
            portName={'port1023'}
            sliderLength={40}
          ></AnalogOutputTest>
