Property Panel

You will find DRL Generator on Dart-IDE is very helpful as a user because of the PROPERTY Panel’s various practical advantages. This document will give you a quick understanding of these properties.

PROPERTY Panel provides the properties of the selected command on the task list. In this panel, you can adjust the value for each command.

Document - Dart-IDE - DRL Generator - DRL User Interface - Property Panel UI

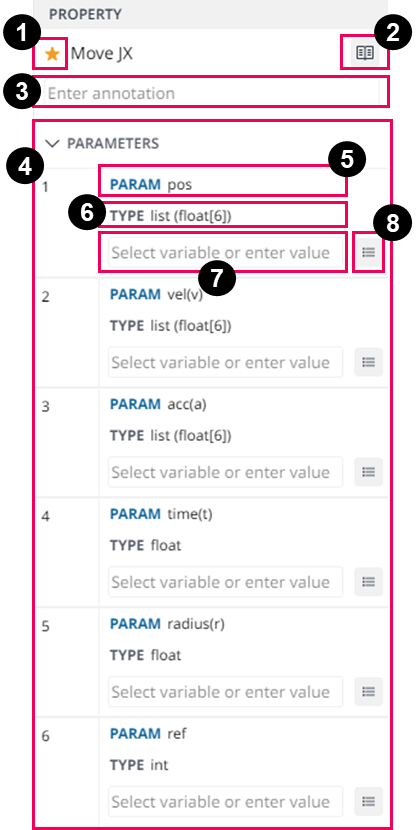

Features of PROPERTY Panel

1. Bookmarked icon

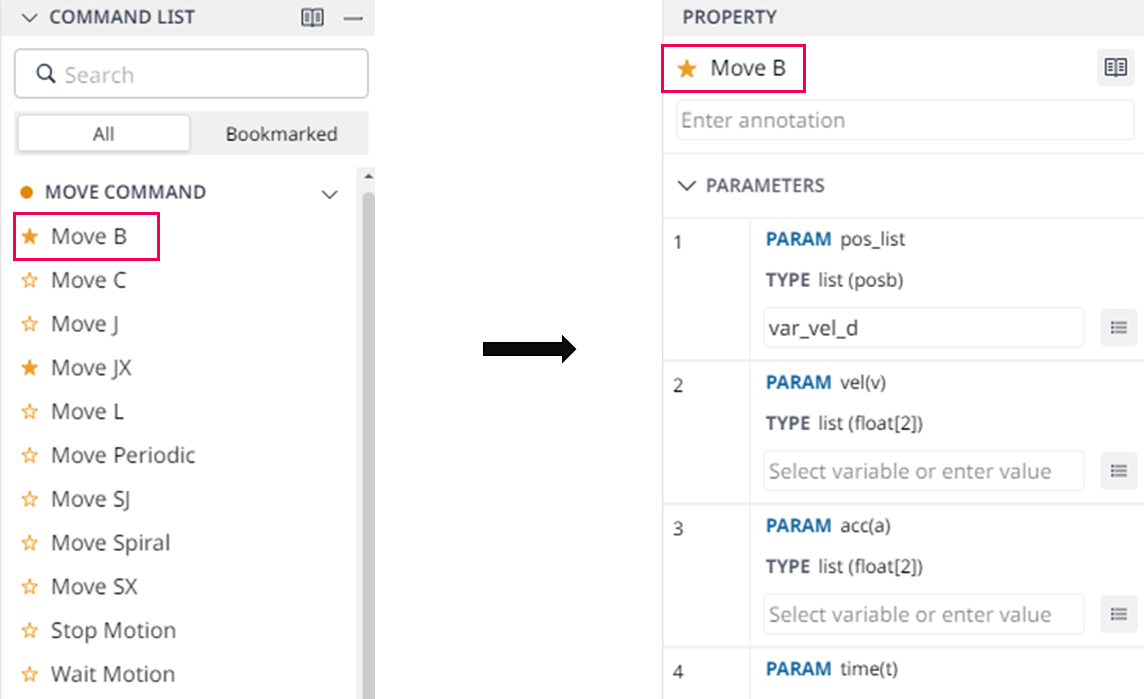

If the command is bookmarked from the COMMAND LIST Panel, the command is also bookmarked in the PROPERTY Panel.

Document - Dart-IDE - DRL Generator - DRL User Interface - Property Panel - Star icon

You can not click on the star icon in PROPERTY Panel to change its status.

2. DRL Programming Manual button

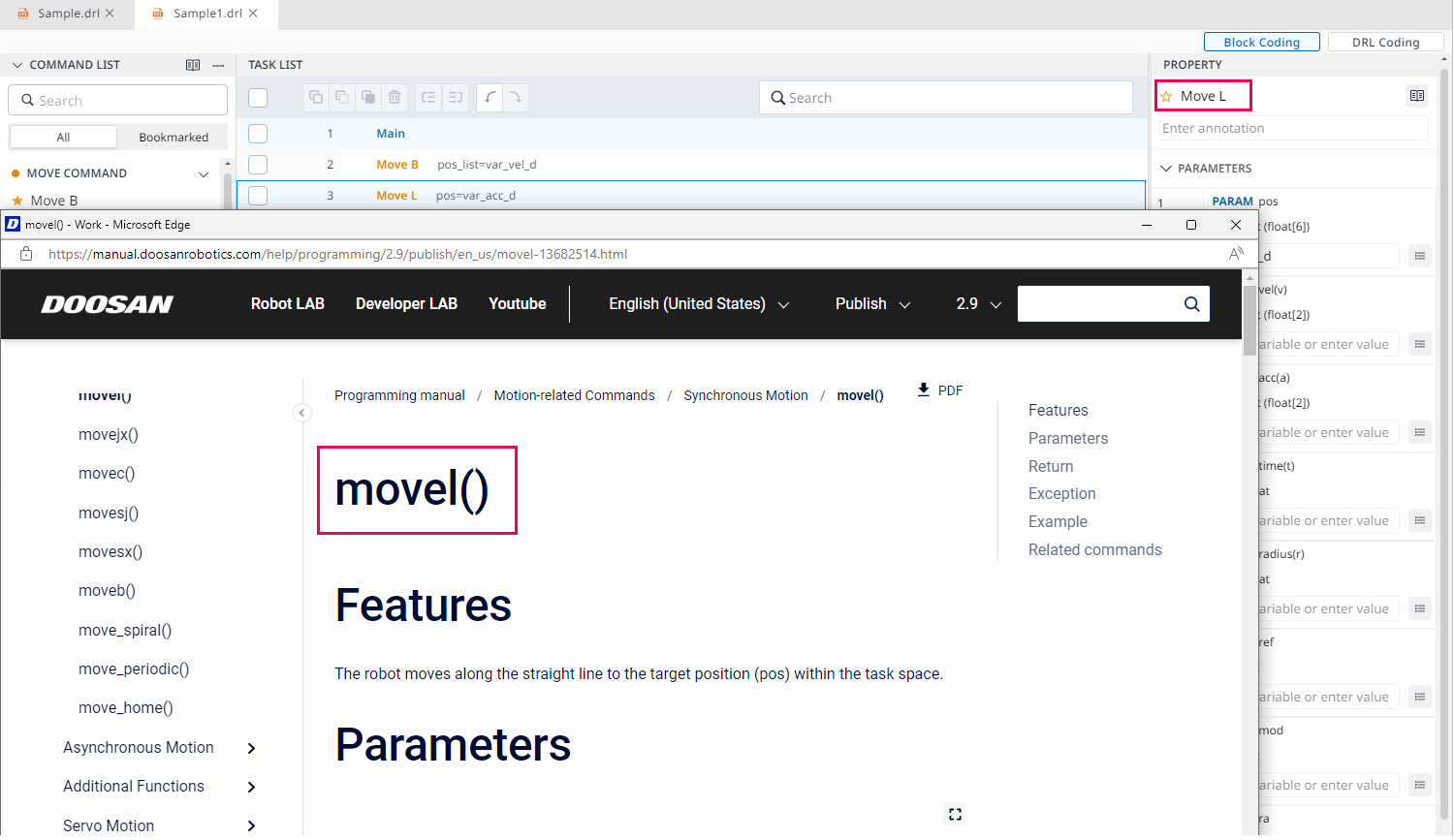

Clicking this button shows the Doosan DRL Programming Manual Popup. The manual of the command corresponding to the PROPERTY Panel is displayed.

Document - Dart-IDE - DRL Generator - DRL User Interface - Property Panel - DRL Programming Manual button
3. Annotation textfield

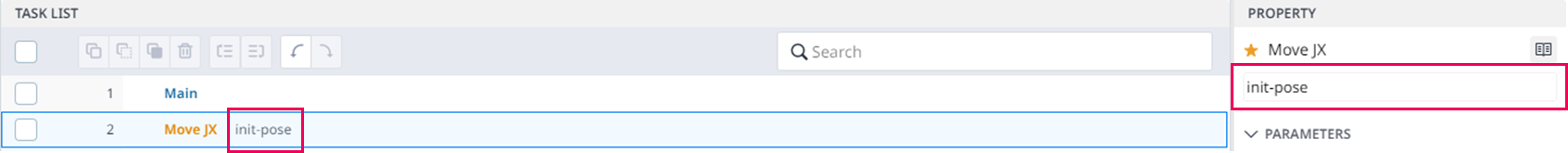

You can enter an annotation, and then the text will be shown on the TASK LIST Panel.

Document - Dart-IDE - DRL Generator - DRL User Interface - Property Panel - Annotation textfield
4. Parameter group

It shows the parameters of the command.

Every command has different parameters, and the parameter has defaulted.

5. Parameter name

This field shows the parameter name.

6. Data type

This field shows the data type of the parameter.

7. Variable / default value textfiled

In this field, you can select a variable or enter a value and type plain text to give a fixed default value.

8. Variable Select button

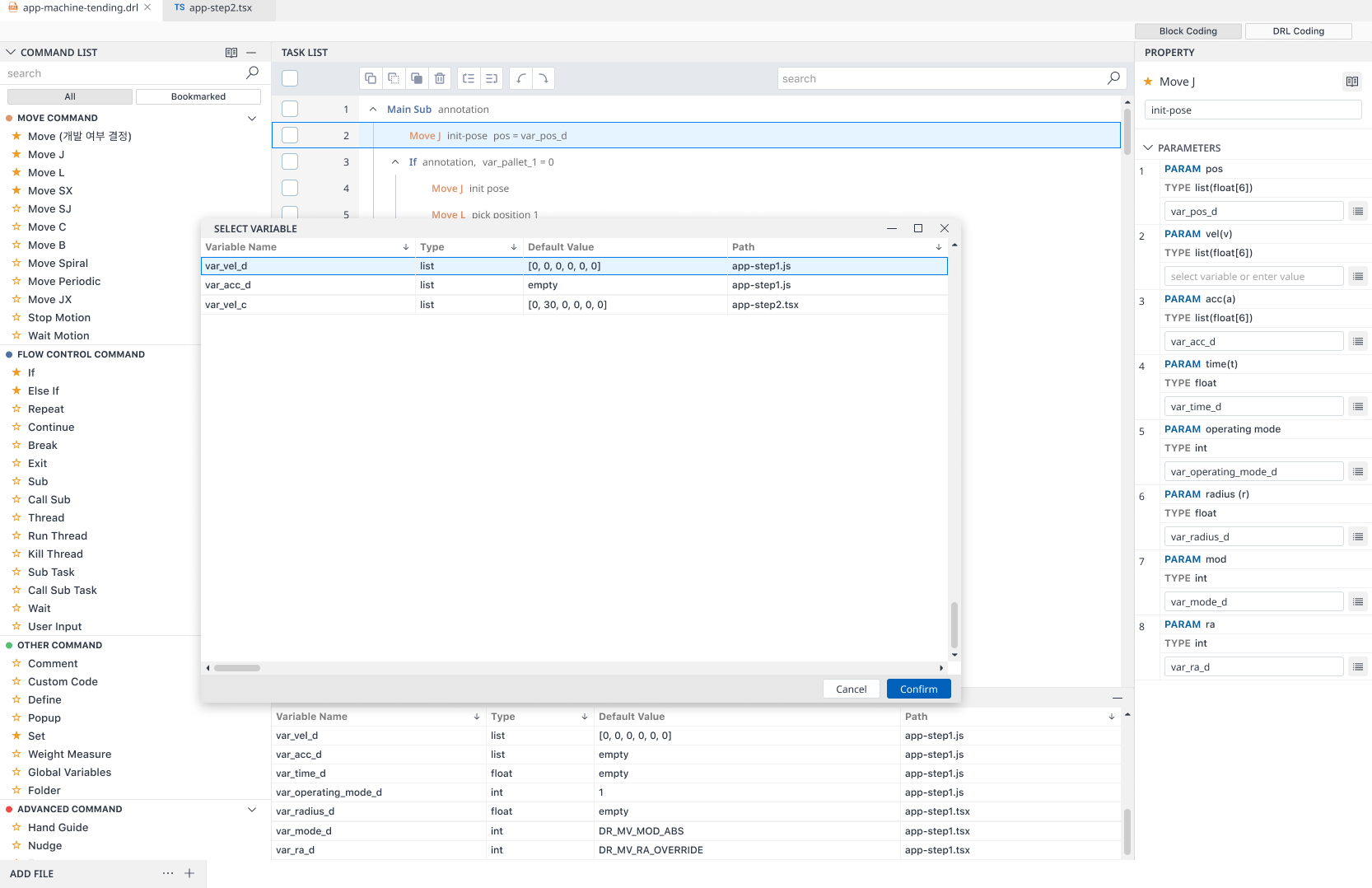

The Variable List will be displayed when you click the Variable Select button. Next, you can select any variables that meet your need.

Document - Dart-IDE - DRL Generator - DRL User Interface - Property Panel - Variable Select button
