If Node

If Node is a conditional node, which must be connected to both Entry and Exit sides of the Node. For the Exit sides, the user must choose either True, False or Exit Node.

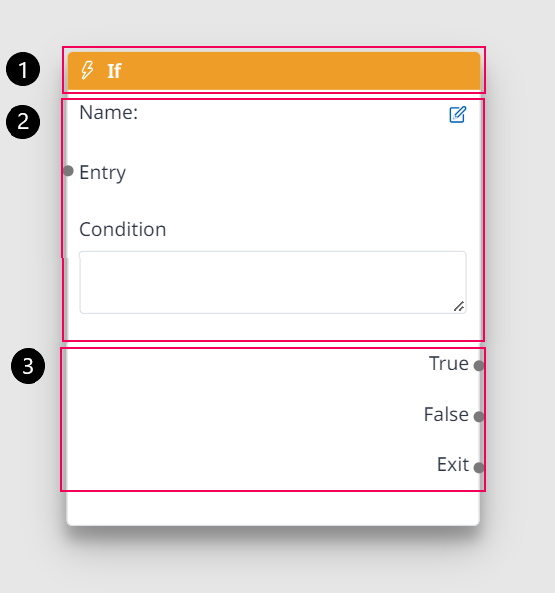

No.	Element		Description	Limitation
1	`Title Left Iconx`		`Title`: described with the text `If`
2	`Name`		A label, which is blank by default, come with Edit icon.	Allows free text input for textbox `Name` There is no limit of characters. If the inputted texts exceed the length of the Textbox, then the exceeded characters should be displayed as … at the end. Automatically removes any spaces entered by the user for textbox `Name` when user focus out.
	`Input`	`Entry`	(Refer to this link: Node)
	`Input`	`Condition` area	Title: `Condition` Status: `Enable`	Allows free text input into `Condition` area. There is no limit of characters for `Condition` area. If the inputted texts exceed the original length, show scrollbar on the right side of text area. Allows to resize text area manually (by drag down)
3	`Output`	`True`	If the condition is true, connect the node to be executed.
		`False`	If the condition is false, connect the node to be executed.
		`Exit`	Exit Port. For the Exit port, this is used when you end the If phrase and continue on the consecutive Visual Script.

Refer to this link for Port Connection: Node
