This section provides an overview of the TASK LIST panel.

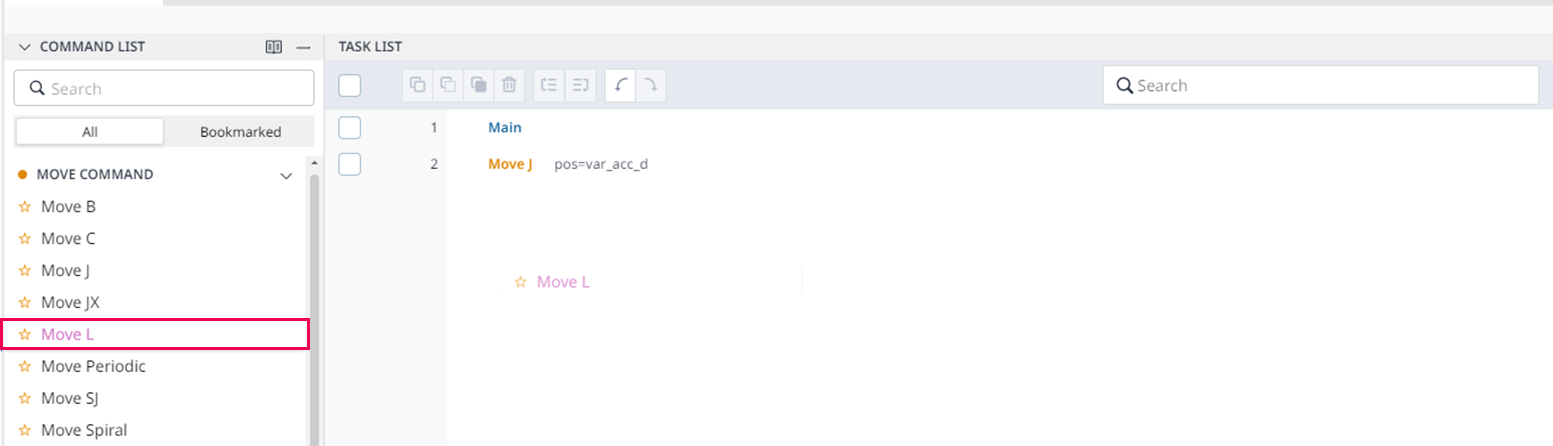

The TASK LIST panel lets you quickly build layouts by dragging commands in Command List Panel. Then, drop it into a Command Editor (2).

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel UI

Features of TASK LIST Panel

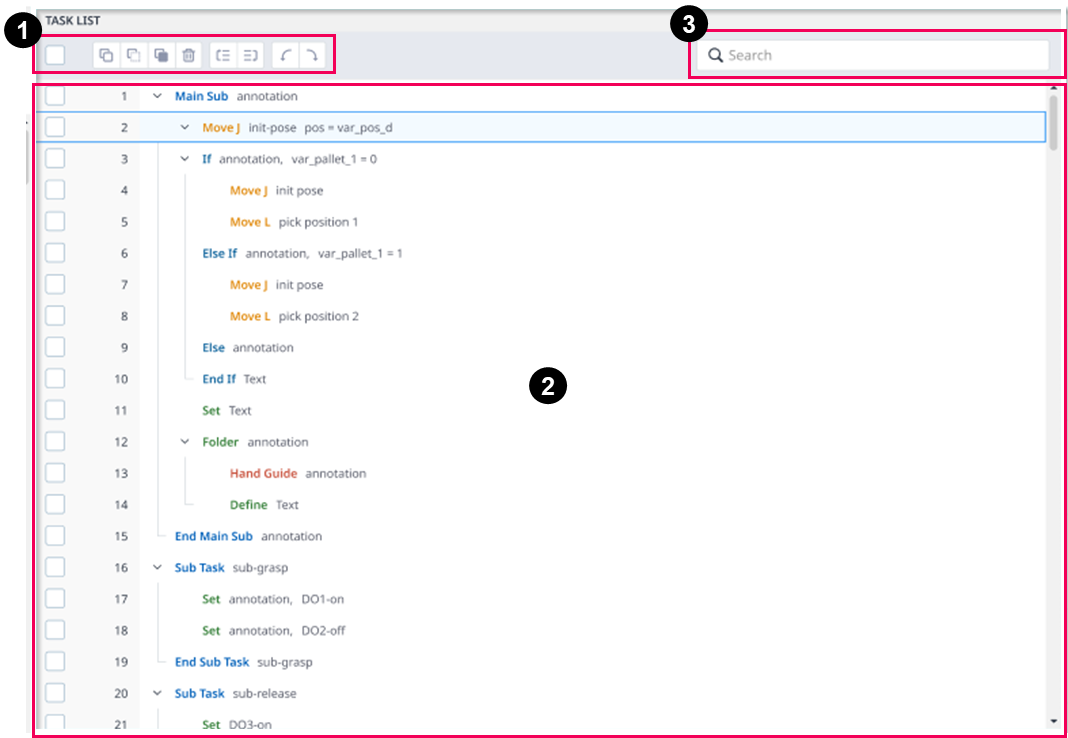

1. Toolbox
Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Toolbox

Before going into the details of each element, there is one thing you need to discover:

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Parent command

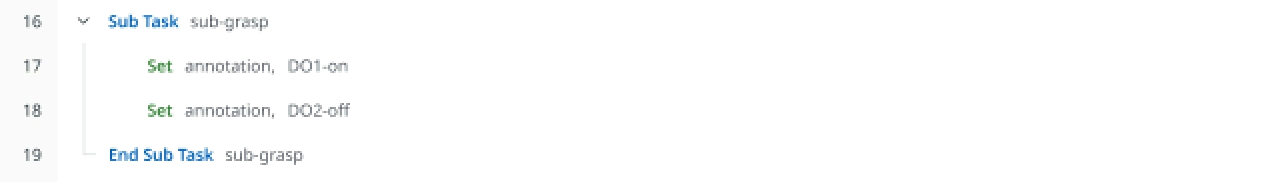

  • Parent command is a couple of commands which include many Child commands. In the image above, you can see Sub Task and End Sub Task is a couple of commands called Parent command.

  • Child command is a sub-command included in the Parent command. In the image above, you can see a Set annotation, DO1-on and Set annotation, DO2-off are Child commands.

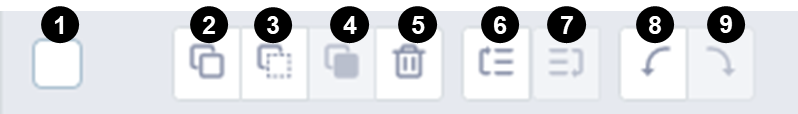

Prerequisites for using buttons (2), (3), (4), (5), (6), (7): You must select the command line checkbox before using the above buttons.

Name

Usage

1

Check all box

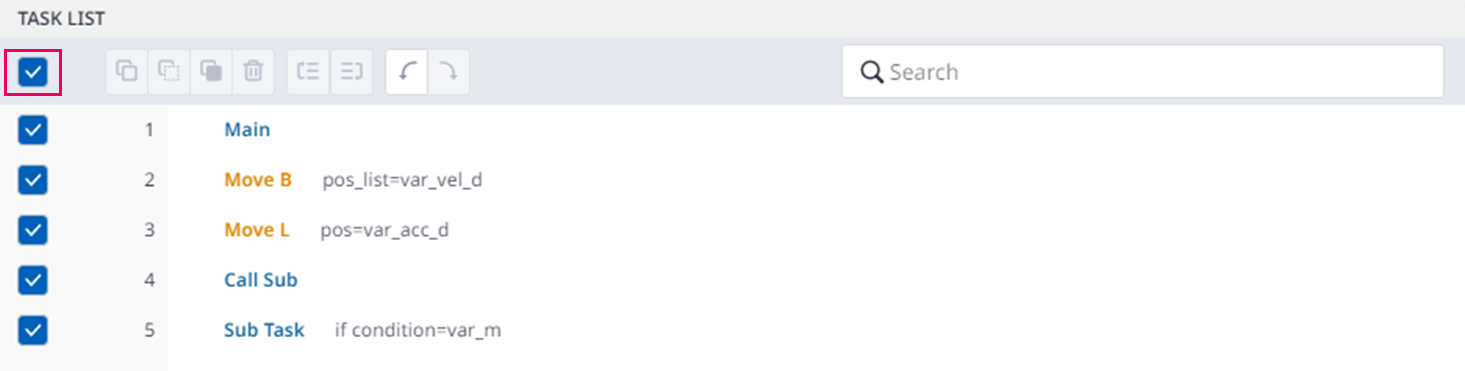

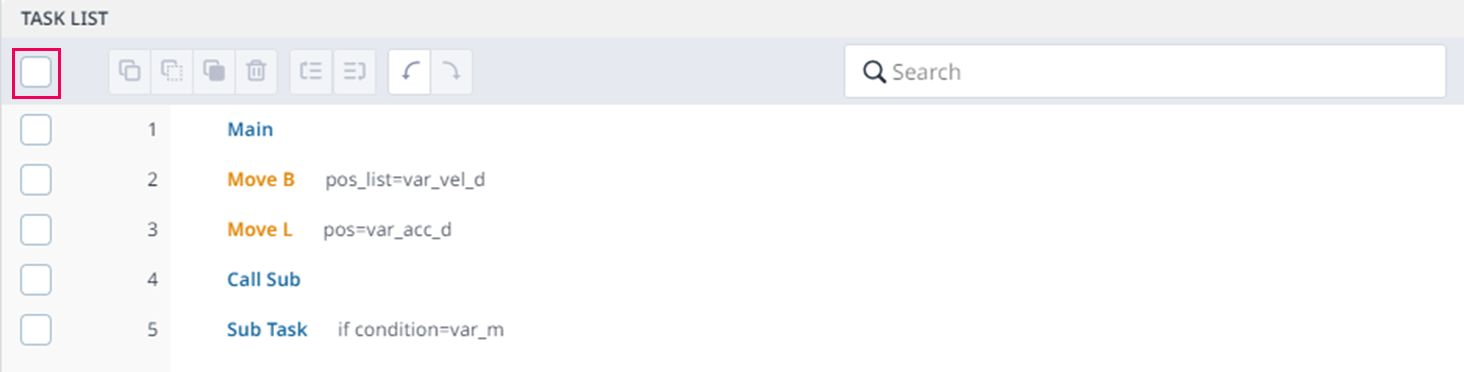

  • When you check on in checkbox on the top. All checkbox in the command lines is checked.

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Check all box
  • When you check off in the checkbox on the top. All checkbox in command lines is checked off

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Check off
2

Copy

  • Cannot copy main sub/end main sub-commands.

  • If a parent command is copied, the child commands are copied together.

3

Cut

  • Cannot cut main sub/end main sub-commands.

  • If a parent command is cut, the child commands are cut together.

4

Paste

  • Enables only when there is copied/cut item exists.

5

Delete

  • Cannot delete main sub/end main sub-commands.

  • If a parent command is deleted, the child commands are deleted together.

6

Row Up

  • Row up the selected line command.

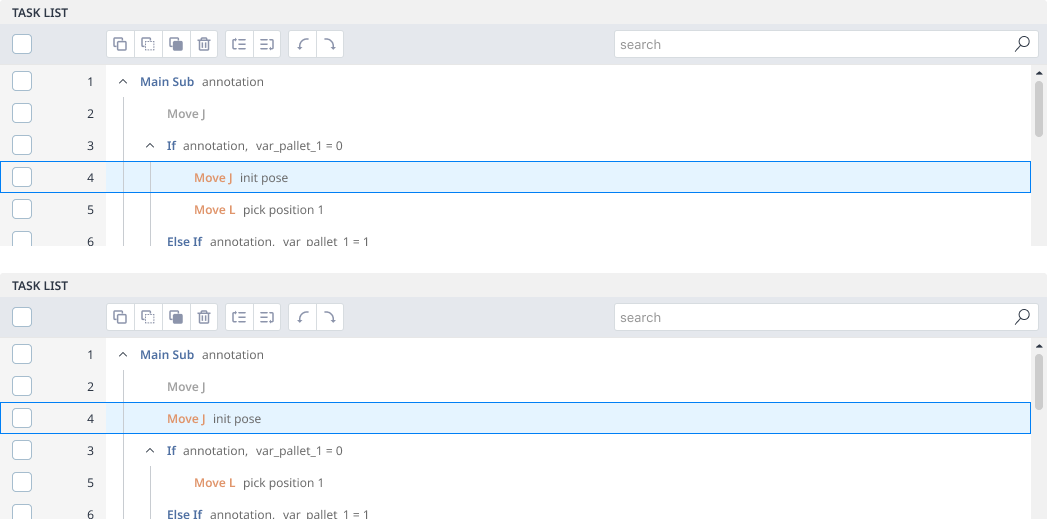

If you select a child command under a parent and click the row-up button, the child command will be placed out of the parent command (refer to the image below).

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Row up command
7

Row Down

Row down the selected line command.

8

Undo

  • You can undo an input.

  • The maximum is 10 times.

9

Redo

  • You can redo an input.

  • The maximum is 10 times.

2. Command Editor
  • In this area, you can drag commands in the COMMAND LIST panel and drop them in the Command Editor.

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Drag, drop command

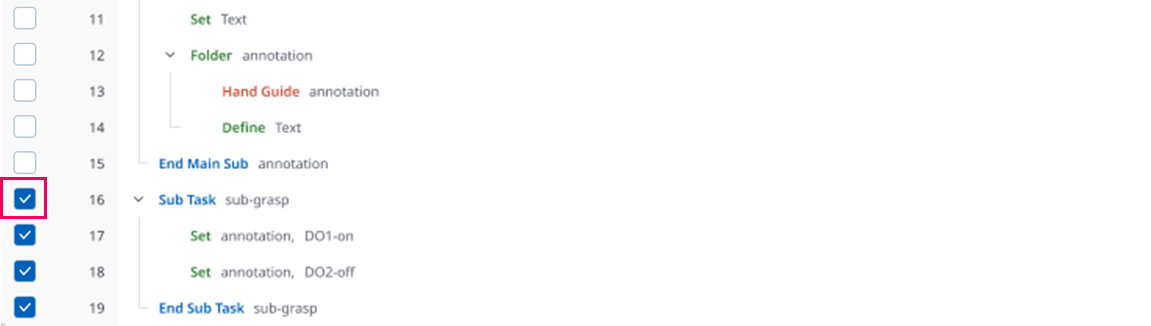

  • After checking on the parent command's checkbox, all the child command's checkboxes are checked and disabled.

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Parent check box

3. Search bar

Users can search command names or annotations.

Tip: You can Dock/ Undock the TASK LIST panel. Please read the guideline as follows:

  • Undock TASK LIST panel

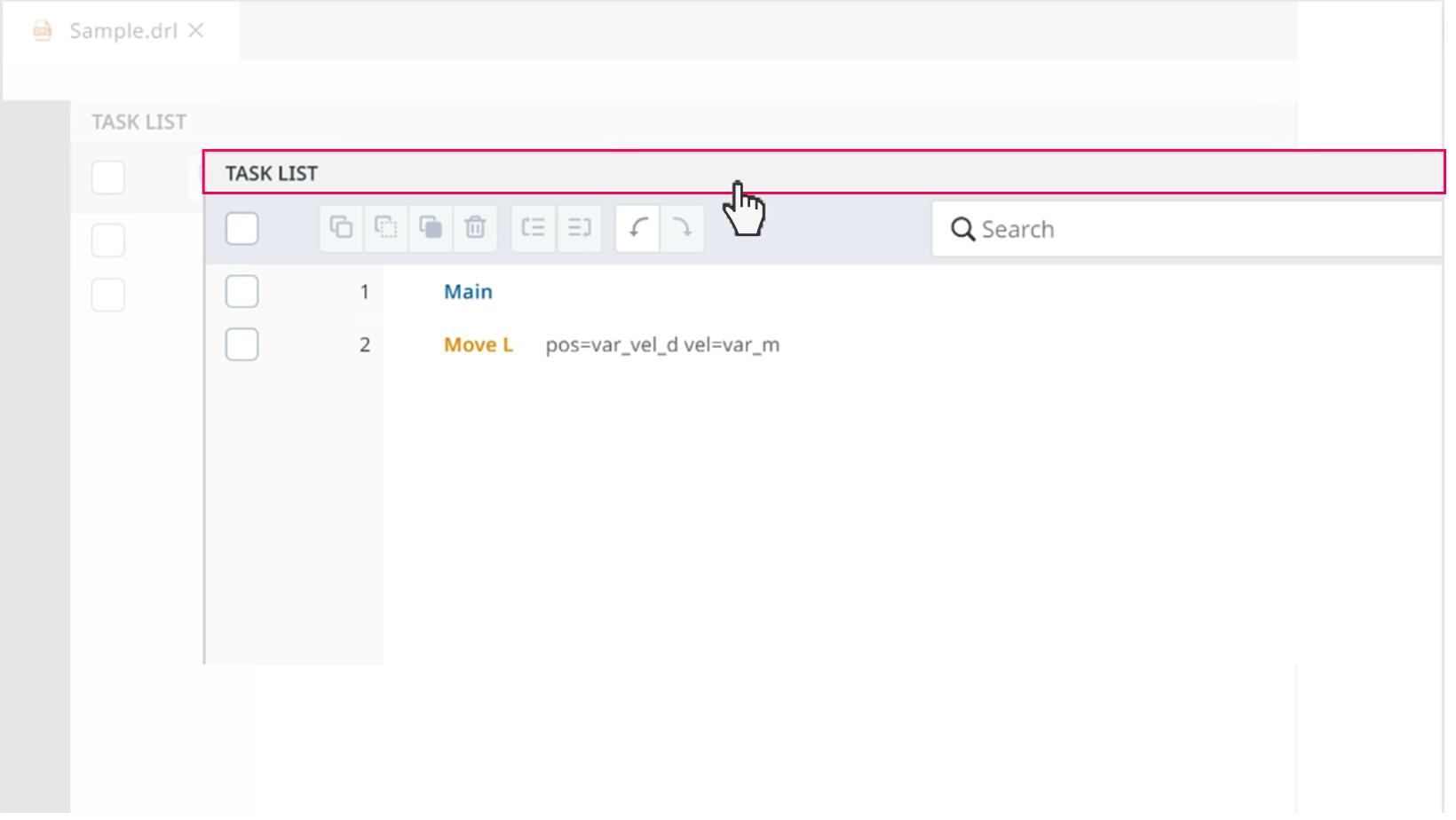

You hold the cursor in the pink border area, drag it anywhere, and drop it. The TASK LIST panel will be undocked.

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Undock Task List Panel

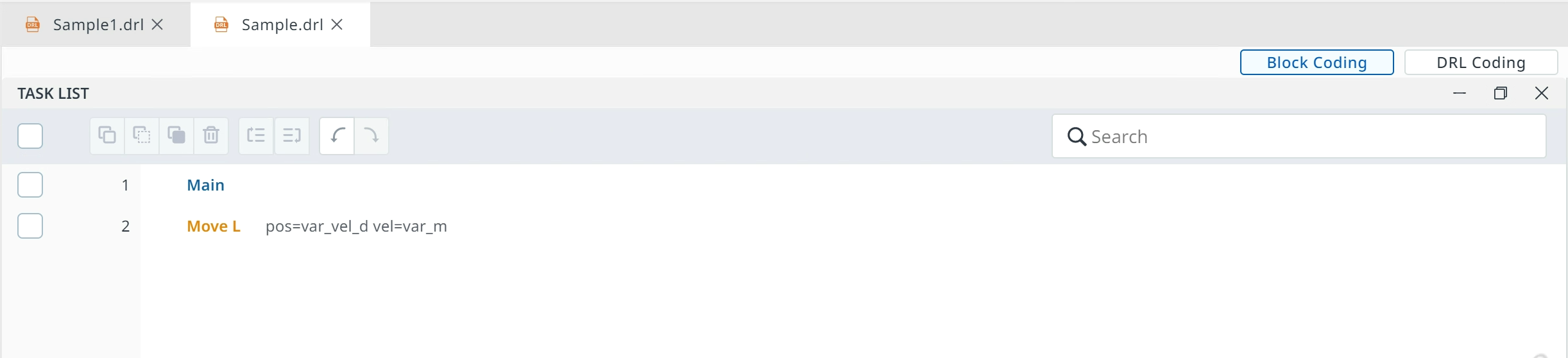

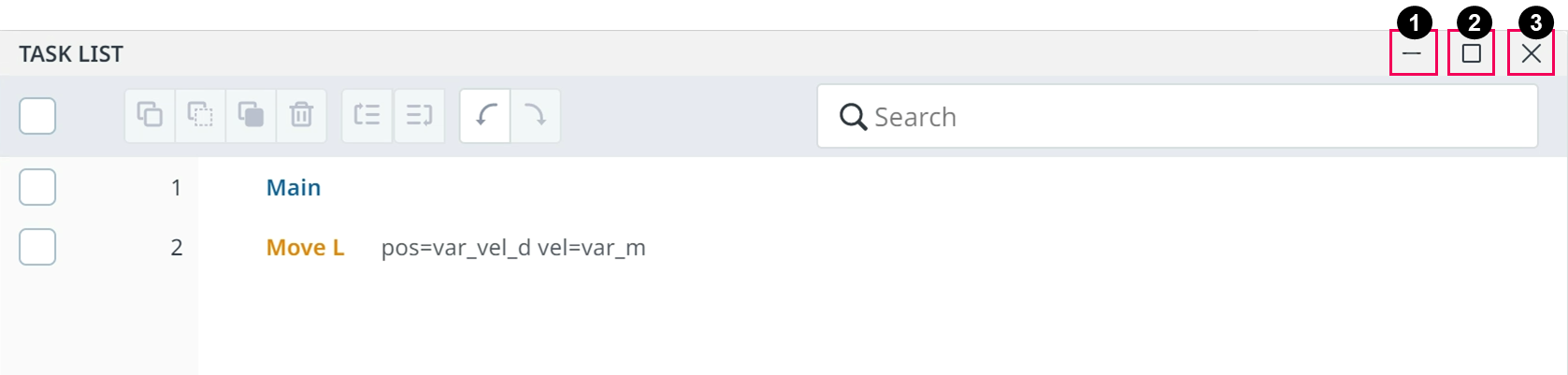

After undocking, the TASK LIST panel will display like below:

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - UI

Title

Description

1

Minimize button

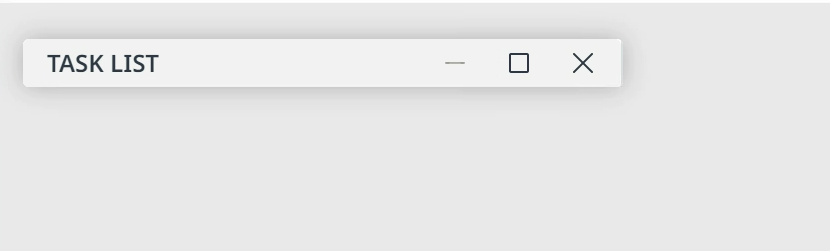

When you click this button, it will be minimized the TASK LIST panel as follows:

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Minimize task list panel

After minimizing, minimize button is disabled.

2

Maximize button

When you click this button, TASK LIST panel zoom in, covering the COMMAND LIST panel, VARIABLE LIST Panel, and PROPERTY Panel.

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Maximize

If you want to resize it, please click the below button.

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Restore down button
3

Close button

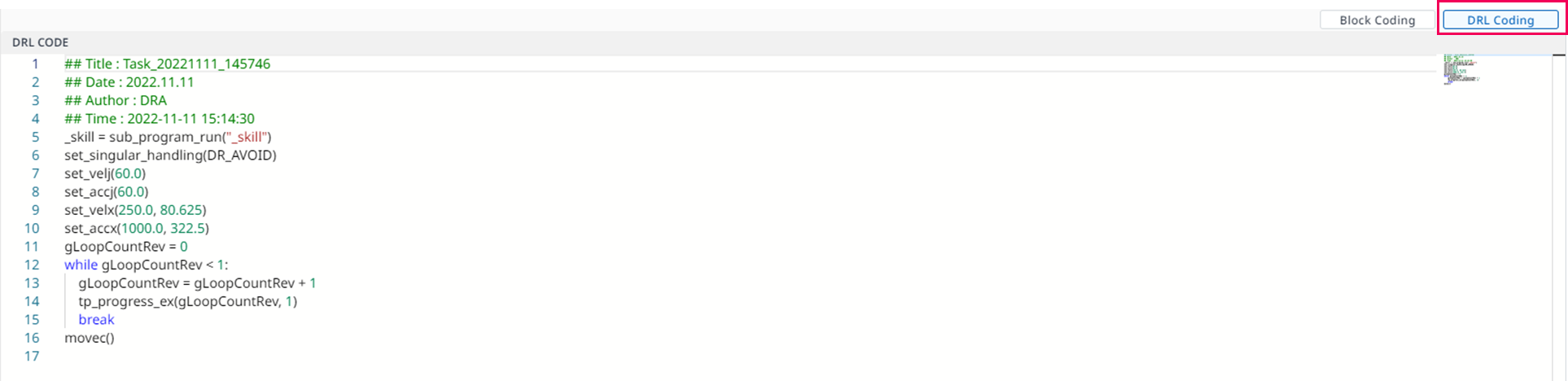

When you click the close button, the TASK LIST panel transfers to the DRL Code page.

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - DRL Coding mode

  • Dock TASK LIST panel

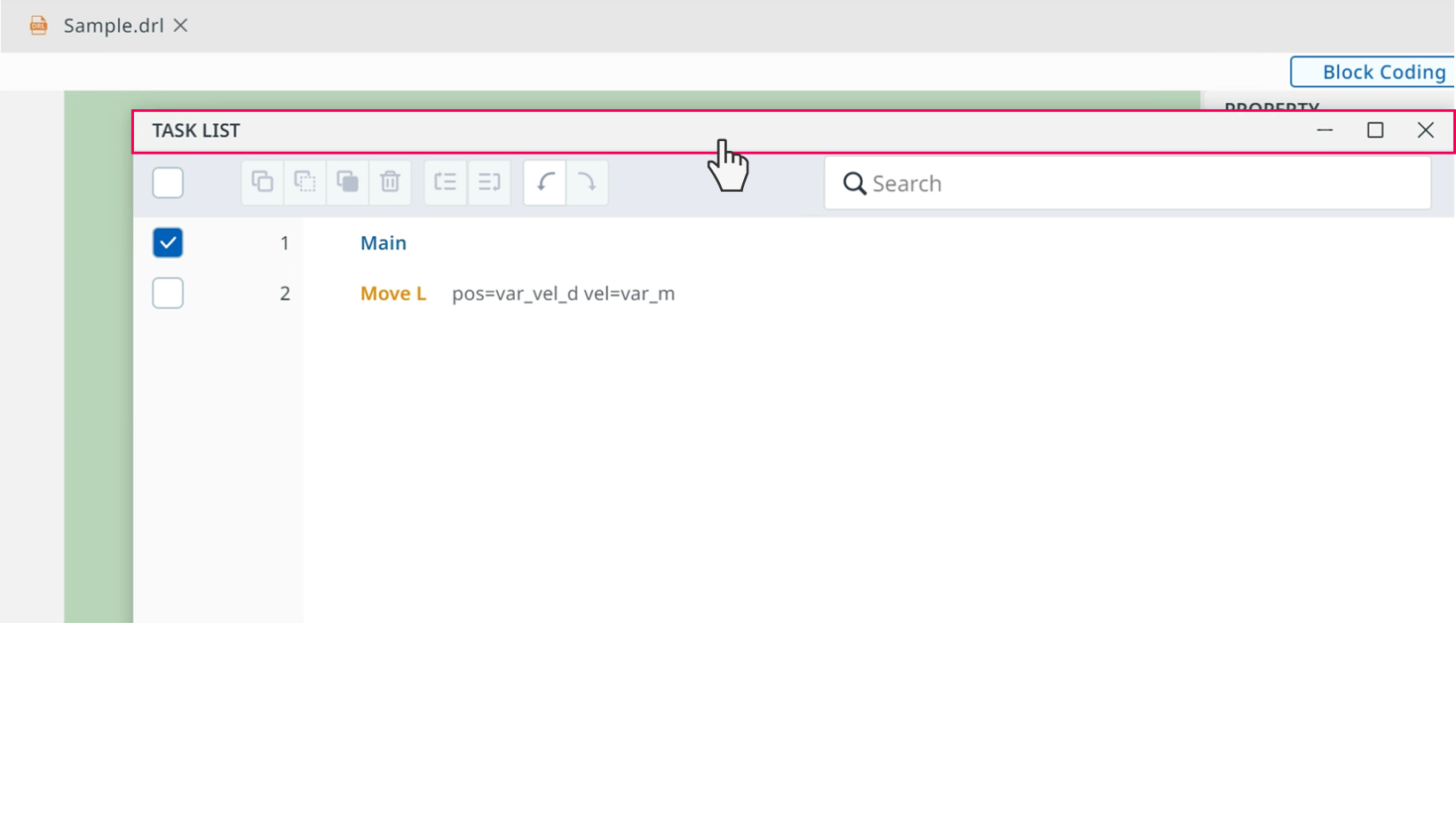

You hold the cursor in the pink border area, drag until the background behind it is green, and drop it. The TASK LIST panel will be docked.

Document - Dart-IDE - DRL Generator - DRL User -Interface - Task List Panel - Dock Task List Panel
